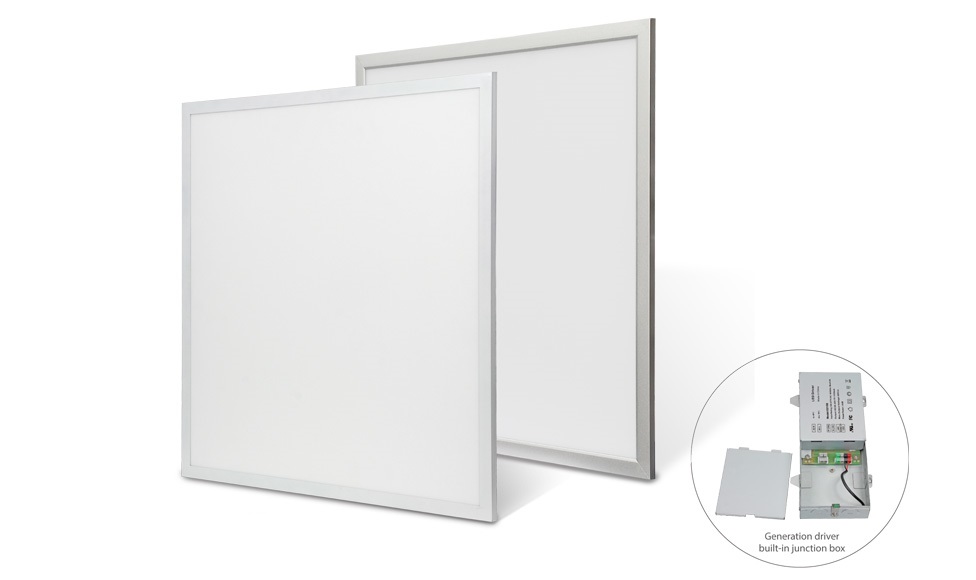

UL / DLC LED PANEL
• 150 LM/W LM-80 certified SMD2835 as light source
• 110-130 LM/W lighting output
• UGR<19 is available
• Philips Xitanium driver
• Input Voltage:AC100-240V
• Operation Voltage: DC36-42V
• Total harmonic distortion: THD<15%
• Power Factor: PF>0.95
• Color Index: Ra>80
• Lumen maintenance @6000h: >80%
• Switching cycle before failure: 100,000
- Description
- Inquiry
Description
| Product Name | Product Code | Rated Power | Input Voltage | LED Type | LED Qty | Power Factor | Luminous Flux (LM) | Lumen Efficacy(LM/W) | CRI |
| 2x2ft/40W | RL-U-40 | 40W | AC90-277V | SMD2835 | 234 | PF>0.95 | 5000-5300 | 125-130 | Ra>80 |
| 2x2ft/60W | RL-U-60 | 60W | AC90-277V | SMD2835 | 312 | PF>0.95 | 7500-7800 | 125-130 | Ra>80 |
| 1x4ft/40W | RL-U-40 | 40W | AC90-277V | SMD2835 | 234 | PF>0.95 | 5000-5300 | 125-130 | Ra>80 |
| 2x4ft/60W | RL-U-60 | 60W | AC90-277V | SMD2835 | 312 | PF>0.95 | 7500-7800 | 125-130 | Ra>80 |
Options
> LED Driver: 1-10V dimmable OR Non-dimmable
> Dimming: STD ON-OFF / 1-10V dimmable
> Warm white: WW/3000K
> Neutral white: NW/4000K
> Pure white: PW/5000K
> Cool white: CW/6000K
Dimension Unit: mm
Photometry Curve
Accessories
