模型 | B-S3570P-20 | B-S3570P-40 | B-S3570P-60 | B-S3570P-80 |
输入电压 | AC100-240V | AC100-240V | AC100-240V | AC100-240V |
瓦数 | 20w | 40w | 60w | 80w |
梁角 | 120° / 12°, 34°, 48° | 120° / 12°, 34°, 48° | 120° / 12°, 34°, 48° | 120° / 12°, 34°, 48° |
LED芯片 | SMD 2835 | SMD 2835 | SMD 2835 | SMD 2835 |
发光效率 | 95 lm /w | 95 lm /w | 95 lm /w | 95 lm /w |
CRI | >80 | >80 | >80 | >80 |
Driver | CE, TUV, SAA | CE, TUV, SAA | CE, TUV, SAA | CE, TUV, SAA |
Material | Aluminum +PC | Aluminum +PC | Aluminum +PC | Aluminum +PC |
Size | L600×W35×H70 | L1200×W35×H70 | L1800×W35×H70 | L2400×W35×H70 |

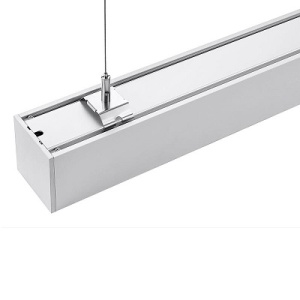

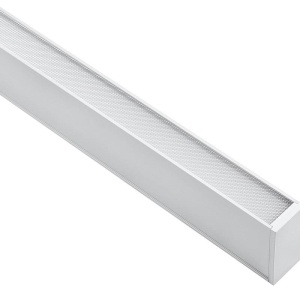

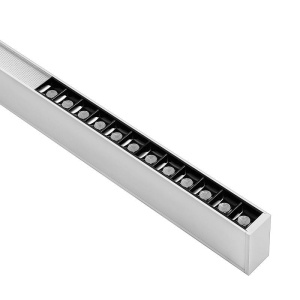

UP & DOWN LED Linear Light
Two sides for lighting : UP & Down
Beam Angle:120° / 12°, 34°, 48°
Combined multifunction(UGR<19, with reflector )
Power:20W/40W/60W/80W
输入电压:AC200-240V
Lenght:600/1200/1800/2400毫米
Size: wide:735毫米,Height:70毫米
CCT:3000/4000K/5000K/6000K
CRI:>80
Light efficiency: 95lm/w
Warranty: 5 years
Power supply: Built-in efficient and safe flicker-free driver
Optional features: 0-10V dimming, DALI dimming, Color &
Brightness adjustable, Emergency lighting.
